Wing Back 2 Bars

DT-WB-2BAR-HC

DiamaPros HTC® compatible wing back double bars are available in 2X-Extra Soft, Extra Soft, Soft, Medium, and Hard concrete bonds and multiple grit options.

Use the rectangular segment tools for a more aggressive cut, and for non-cementitious coating removal.

  • Use double segment tools with heavier machines
  • For a more aggressive cut, use the single rectangular segment tools during the first grinding step on all machines

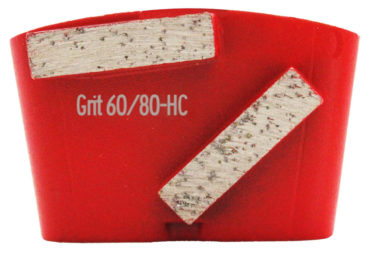

Part Number Grit Concrete Type
DT-WB-2BAR-HC-1820 18/20 Grit Hard Concrete
DT-WB-2BAR-HC-3040 30/40 Grit Hard Concrete
DT-WB-2BAR-HC-6080 60/80 Grit Hard Concrete
DT-WB-2BAR-HC-120150 120/150 Grit Hard Concrete

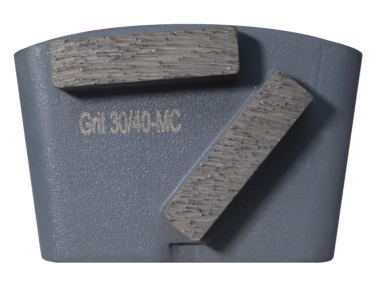

Part Number Grit Concrete Type
DT-WB-2BAR-MC-006 6 Grit Medium Concrete
DT-WB-2BAR-MC-1820 18/20 Grit Medium Concrete
DT-WB-2BAR-MC-3040 30/40 Grit Medium Concrete
DT-WB-2BAR-MC-6080 60/80 Grit Medium Concrete
DT-WB-2BAR-MC-120150 120/150 Grit Medium Concrete

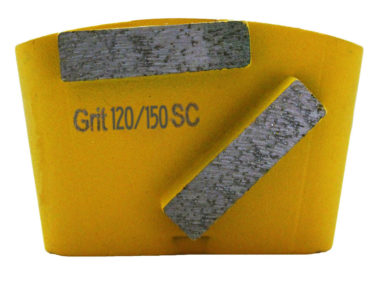

Part Number Grit Concrete Type
DT-WB-2BAR-SC-1820 18/20 Grit Soft Concrete
DT-WB-2BAR-SC-3040 30/40 Grit Soft Concrete
DT-WB-2BAR-SC-6080 60/80 Grit Soft Concrete
DT-WB-2BAR-SC-120150 120/150 Grit Soft Concrete

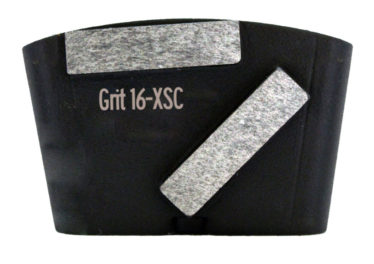

Part Number Grit Concrete Type
DT-WB-2BAR-XSC-1820 18/20 Grit Extra Soft Concrete
DT-WB-2BAR-XSC-3040 30/40 Grit Extra Soft Concrete
DT-WB-2BAR-XSC-6080 60/80 Grit Extra Soft Concrete
DT-WB-2BAR-XSC-120150 120/150 Grit Extra Soft Concrete

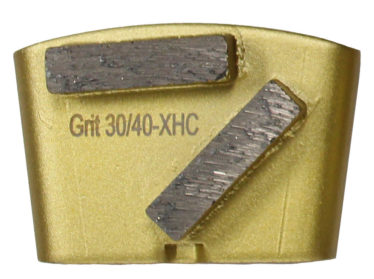

Part Number Grit Concrete Type
DT-WB-2BAR-XHC-006 6 Grit Extra Hard Concrete
DT-WB-2BAR-XHC-1820 18/20 Grit Extra Hard Concrete
DT-WB-2BAR-XHC-3040 30/40 Grit Extra Hard Concrete
