ROG-60 Ride-On Grinder

The DP-ROG-60 ride-on grinding and polishing machine was engineered specifically for the concrete prep and polishing contractor. The powerful 18HP Briggs and Stratton motor along with the magnetic plates allow the DP-ROG-60 to tackle prep jobs. Complete with quick connection Velcro foam plates for resin polishing, the DP-ROG-60 can tackle large polishing jobs quickly, and reduce labor costs. It’s vacuum hose attachment allows the unit to be run wet or dry.

The machine utilizes a small, durable frame that makes it easy to transport around tight areas. The DP-ROG-60 easily fits on trailers, or in the bed of trucks. With its sturdy lifting and transportation arms, there is no need to have a forklift on site for changing tools or moving the machine.

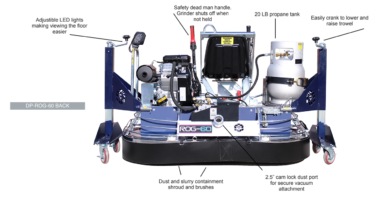

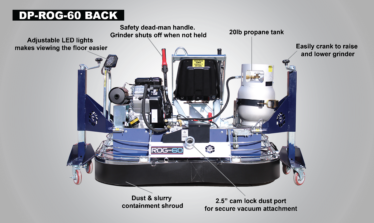

Design Features:

  • 20lb propane tank
  • 2 side transport wheels and lifting arms
  • 8 magnetic metal tooling plates
  • 8 foam velcro tooling plates
  • 2 LED lights
  • Dry vacuum attachment- 2.5" camlock
  • Dust and slurry containment shroud
  • Electric start with battery
  • Forklift lifting point
DP-ROG-60 Specifications
Engine 18HP Briggs and Stratton
Fuel Propane
Weight 670 lbs w/ plates
Weight 750 lbs w/ stands and plates
Number of Heads 8
Head Diameter 12 inches
Dimensions 61" x 31.5" x 38"
Production Rate up to 10,000 sqft/hour
