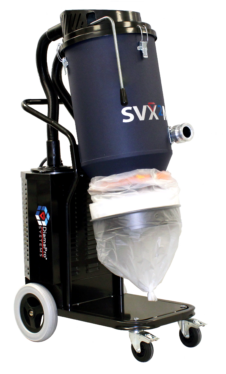

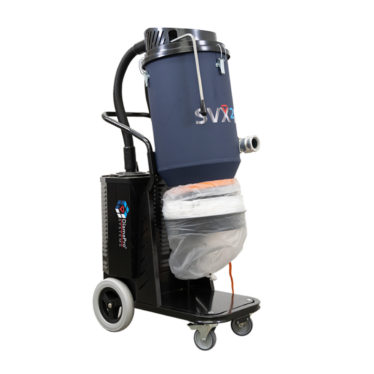

The SVX2M HEPA Filtered Dust Extractor from Diamapro Systems is 110V with manual filter cleaning. It features two stages of filter cleaning: a cylindrical pre-filter for separating larger particles, and a HEPA filter for each motor to remove the smallest dust particles. Filters are cleaned with a durable, metal hand-pulsing system. The dual 110v motors feature individual switches and deliver a theoretical 258CFM and 100 inches of water lift. The rugged design includes a heavy metal frame, ergonomic handles, and sturdy casters for easy handling. The SVX2M weighs 108 lbs. and is easy to load and unload at job sites.

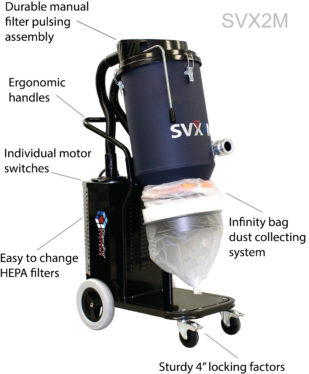

Manual Features:

  • Cylindrical pre-filter specifically designed to increase airflow and allow dust to slide off
  • Durable metal jet pulsing system
  • Rugged frame built for construction sites
  • Strong casters with a sturdy attachment to the frame
  • Individual switches for each motor

Comes with:

  • Hose and Connections
    • 25ft black hose
    • 2 qty. 2.5” female camlock
    • 2” soft cuff
    • (additional hose sizes, camlocks, and soft cuffs available)
  • Customizable Floor Tool
    • 2" diameter wand and various options of brushes and squeegees


CFM 258
Waterlift 100
Voltage 110 Volt
Weight 108 Lbs
Filter Cleaning Manual
L X W X D 28" X 18" X 55"
