SCAR10HD-P Propane Walk-Behind Concrete Scarifier

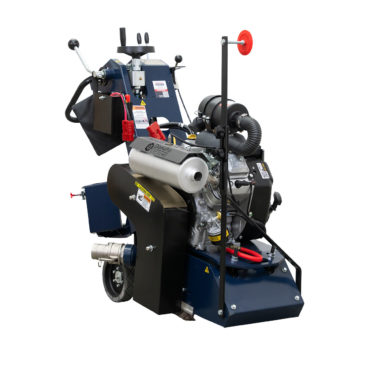

Scar10 HD Photos and Cut Outs Skewed Right DSC04256

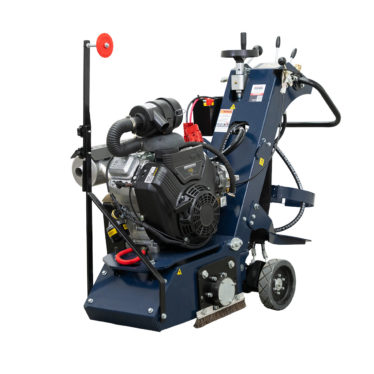

Scar10 HD Photos and Cut Outs Skewed Left DSC04254

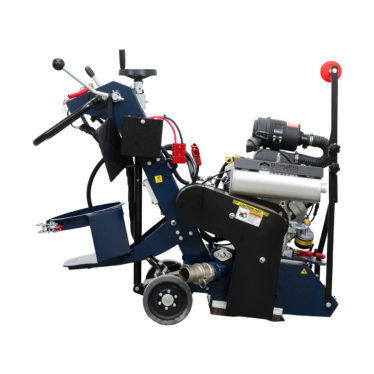

Scar10 HD Photos and Cut Outs R Ight Side DSC04257

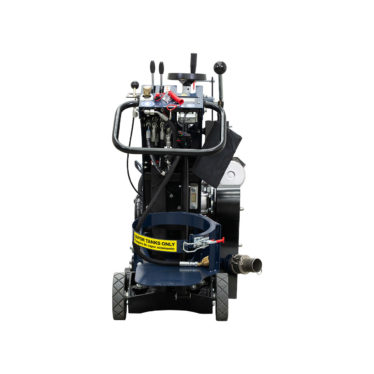

Scar10 HD Photos and Cut Outs Rear DSC04258

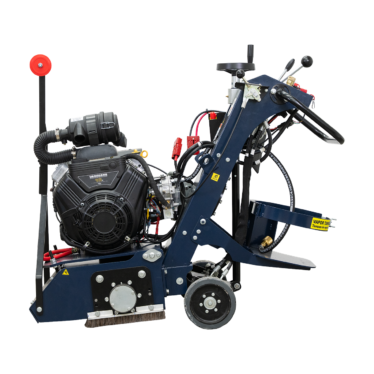

Scar10 HD Photos and Cut Outs Left Side DSC04253

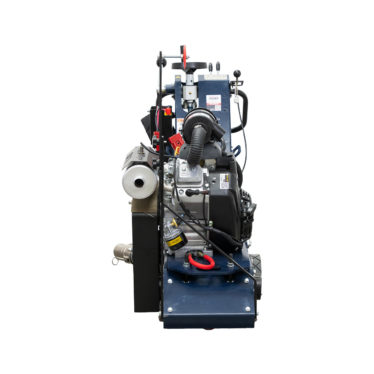

Scar10 HD Photos and Cut Outs Front DSC04255

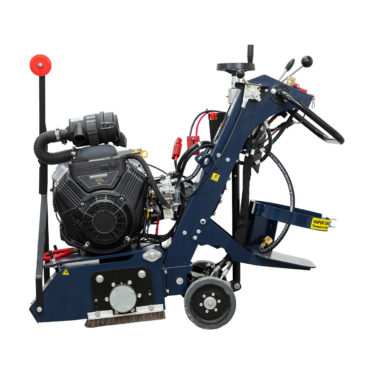

Scar10 HD Photos and Cut Outs Left Side DSC04253

swipe for more gallery photos

Next Steps

Get a Quote

Powered by an 18 HP Vanguard V-Twin engine, this self-propelled scarifier delivers reliable performance for demanding concrete-removal and surface-preparation applications.

With a 10-inch working width, the SCAR10HD-P can scarify approximately 500–700 square feet per hour at a depth of 1/8 inch per pass. Its forward and reverse hydraulic drive, fine-adjustment depth control, and easy-change drum design help contractors work efficiently across a variety of concrete surfaces.

Built for demanding jobsite conditions, this machine features a durable 1/4-inch steel frame, oversized heavy-duty roller bearings, an emergency stop safety cord, and a cam-lock dust port for convenient vacuum connection. The integrated SAM (Safe Air Monitoring) device adds another layer of jobsite awareness.

Key Features:

  • 18 HP Vanguard V-Twin engine: Propane-powered performance for demanding surface removal.
  • 10-inch working width: Processes approximately 500–700 sq. ft. per hour at 1/8-inch depth per pass.
  • Self-propelled drive: Forward and reverse operation for improved maneuverability.
  • Adjustable cutting depth: Manual adjustment from 0 to 5/16 inch, with a locking fine-adjustment wheel.
  • Easy-change drum system: Six-shaft, side-loading drum available for convenient drum changes.
  • Dust collection connection: Cam-lock dust port simplifies vacuum hookup.
  • Heavy-duty construction: 1/4-inch steel frame and oversized roller bearings.
  • Jobsite safety features: SAM Safe Air Monitoring device and emergency stop safety cord.
  • Convenient starting: Electric start with backup pull start.

Ideal for concrete contractors and surface preparation professionals, the DiamaPro SCAR10HD-P provides a practical solution for aggressive concrete removal, pavement marking removal, coating removal, and trip-hazard reduction.

Product Specifications

  • Model: SCAR10HD-P
  • Power: 18 HP
  • Fuel: Propane
  • Working Width: 10 inches
  • Working Depth: 0–5/16 inch
  • Removal Rate: Approximately 500–700 sq. ft./hour at 1/8-inch depth per pass
  • Net Weight: 575 lbs. with cutters
  • Drum Rotation: Up-cut
  • Depth Control: Manual adjustment
  • Machine Dimensions (L × H × W): 52 × 21 × 37 inches

Optional tungsten carbide flails are available.
