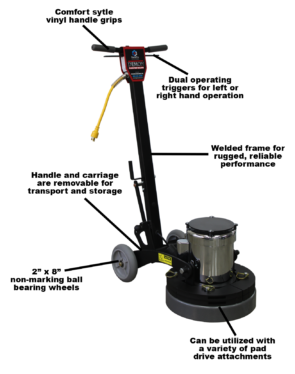

Demon Floor Machine

The DiamaPro Demon is a single speed machine that performs Xtra Heavy-Duty scrubbing, stripping and surface preparation on all hard floors. Utilizing a floating head design which insures 100% pad contact always. Being able to disconnect the handle from the running unit allows for easy storage.

Easy to disassemble for storage or transportation. Adjusting head pressure is made easy with 4 removable 17 Lb weights.

The Demon features:

  • Handle and carriage is easily removable for transport and storage
  • Low current draw
  • UL/CUL approved for safe performance
  • Thumb operated safety switch
  • Negative pressure on/off switch
  • Dual steel operating triggers for left or right-hand operation
  • One-piece, heavy duty industrial
  • Powder coated, steel handle for optimum durability
  • Welded frame for rugged, reliable performance
  • 2” x 8” non-marking ball bearing wheels
  • Variable position positive lock handle for operator comfort and safety
  • Comfort style vinyl handle grips for ease of use
  • 360-degree wraparound and under snug fit bumper – no tools needed for replacement
  • Comes standard with a dust control shroud
  • Multiple purpose machine that can be used for: scrubbing, stripping, grinding, and screening
  • Can be utilized with a variety of pad driver attachments

Specifications:

Weight 125 Lbs
Pad Size 17" and 20"
Motor 1.5 HP TEFC AC
Gear Box 3-Idler 11:1
AMP Draw 8.4
Power 115 Volt - 60 HZ
Cord 50" 12-3 ST JOW
Brush RPM 165
